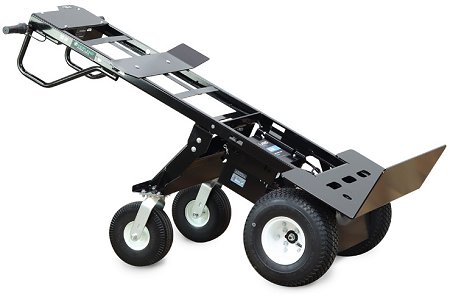

Additional Information - Overland Electric Powered Transformer Hand Truck with Foot Plate - 70425-LG
The Transformer Hand Truck from Overland Carts changes the way companies operate. Built on the powerful electric drive system found in all Overland Carts, this hand truck is capable of handling up to 750 pounds.
Top Reasons to Buy an Overland
Easy to use – Power it on, twist the throttle and go.
Safe to Operate – Numerous safety features and a four wheel design set us apart.
Assembled in the USA – Quality you can feel. Our customer support and factory are located in Archbold, OH.
All electric power – Zero emissions, zero fumes, and virtually no noise.
Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
All Day Battery – Operate the cart throughout the day on a single charge.
Massive Capacity – Load the cart up with 750 lbs of whatever you want.
Fully Assembled – All Overland Carts ship fully assembled.
Safety Features
SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
HillSense – Allows the cart to be safely used on inclines and declines. The cart will travel at the speed set by the user, not by the incline or decline.
AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied. This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time. If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed. To brake is automatically applied.
Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop. AutoLock will then engage and the cart will be secure.
No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
Tested Over Time – Overland Cart has been developing and building carts for 10 years. We know our carts and have developed them to be as safe as possible.
Additional Features
Heavy Duty Attachments – Add attachments as need. Each attachment is capable of holding 750 pounds.
Tool less Removal – Each attachment locks in place with a quick release pin.
Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
Variable Speed Twist Throttle – Similar to a motorcycle throttle. Very easy to use and to control the speed.
Enclosed Gear Box – Gears are enclosed for maximum safety and durability. The transaxle is sealed for life and does not require any maintenance.
Manual Mode – Allows the cart to be operated without battery power.
Forward/Reverse – Direction can be selected from the toggle switch on the handlebar. The cart travels the same speed in either direction.
Zero Turn Radius – The open differential allows the cart to be spun in a circle without power being applied, allowing for a true zero turn radius.
Near Silent Operation – The electric drive system is almost silent in its operation.
IMPROVED Battery Life – 6-8 hours of run time on a standard battery.
110V Off Board Charger – Charge the cart with an extension cord or plug it right in the wall.
Battery Life Indicator – LED lights ensure you always know the current battery status
Powder Coated Frame – The chassis is welded and powder coated in house for lasting finish
Heavy Duty 15″ Drive Tires – Complete with a steel hub and heavy duty wheels.
10″ Rear No Flat Swivel Casters – Foam filled heavy duty swivel wheels.
Rechargeable AGM Sealed Lead Acid Batteries – AGM batteries are the most advanced batteries on the market and are both powerful and long lasting.
Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
Patented Design – Our carts feature patented designs and components. Ensuring top tier build quality and design on all genuine Overland Carts.
Transformer Tire Options
15″ Turf Tire – Standard on all Transformer Hand Trucks. Performs well on a variety of surfaces, especially flat surfaces. The hand truck width is is 28″ from tire edge to tire edge.
Overland Limited Warranty
1 year – Powertrain and Electronics
1 year – Chassis
Limited to manufacturing defects
| Specifications: |
|
| Overall Dimensions (In.) L x W x H: |
66”L x 40”H x 28”W
|
| Motor |
24V 600W direct drive motor
|
| Drive |
Single Reduction Open Differential Transaxle
|
| Gear Ratio |
18:01
|
| Capacity Level Ground |
750 lbs (295 kgs)
|
| Speed |
0 – 3.2 mph / (0 – 5.2 kph), Variable
|
| Static/Park Brake |
Electromechanical, Fail Safe
|
| Battery |
24V 22 amp hr (AGM) rechargeable battery pack
|
| Charger |
5 amp hr off board charger with battery management system
|
| Operating Time |
6 – 8 Hours (Real World)
|
| Weight |
212 pounds
|
| Footplate Dimensions |
9″D x 20″L
|
