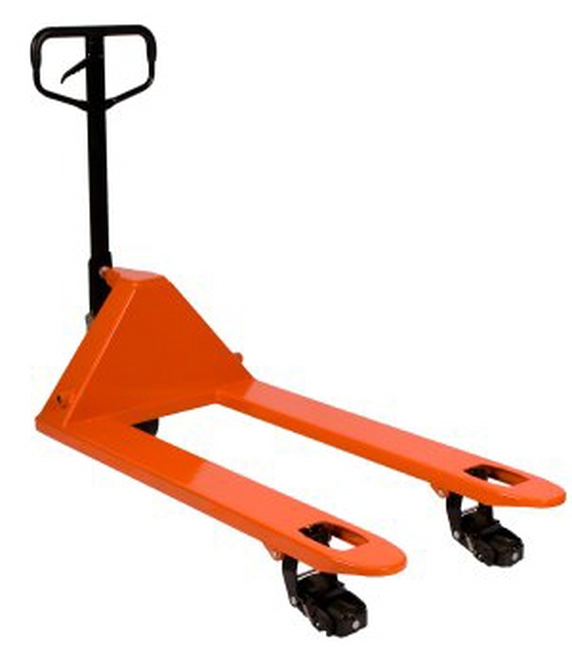

Handles pallets in 4 directions
This truck was designed to move long loads down narrow isles. Traverse
movement can be done by moving the handle up and down 8 times or so, then turning the handle by 900. Traverse movement provides more flexibility and convenience to
expand the application range of the truck. Equipped with 7.9" polyurethane steer
wheels and load rollers for increased rollability.
Quality Features
- Safety designed loop handle, includes neutral position, and fingertip release
- Spring-a-matic handle self returns to vertical position
- Traverse action maneuvers in compact area
- One piece formed steel “c" channel tapered, reinforced forks
- Leak-proof pump assures maintenance-free
- Hard chrome-plated ram and piston
- Urethane seals and wipers
- Large steer wheels with “ball-thrust” steering
- Sealed ball bearings throughout
- All pivot points can be lubricated easily
- Tapered fork ends and nylon rollers permit easy entry and exit of pallets
- Polyurethane wheels and load rollers
- Only 1 snap ring and 4 pins to remove the hydraulic unit
- Powder coated quality safety color after anti-rust treatment
|
Load capacity - standard
|
|
5500 lbs.
|
|
Load capacity - side
|
|
3,300 lbs.
|
|
Lowered height of forks
|
|
3.4"
|
|
Raised height
|
|
7.9"/7.5"
|
|
Overall width across forks (A)
|
|
27"
|
|
Fork width
|
|
6.3"
|
|
Space between forks (B)
|
|
14.4"
|
|
Standard fork length (l)
|
|
48"
|
|
Load rollers - polyurethane
|
|
2.9" x 3.2"
|
|
Front wheels (steer) - polyurethane
|
|
7.9" x 2"
|
|
Body length (including pump)
|
|
14"
|
|
Load roller axle to fork-tip end of truck:
|
|
|
Roller down
|
|
7.83"
|
|
Roller up
|
|
9.84"
|
|
Approximate weight
|
|
177 lbs. |
